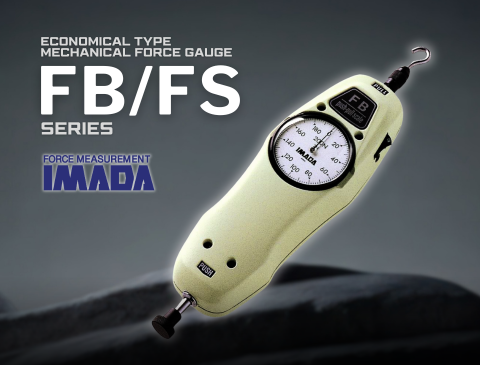

FB/FS series

The economical type of mechanical force gauge.

Enables to measure peak value due to switchable peak hold function.

Capable to delete the attachment’s weight by rotating the tare ring.

Rugged design and no need for electricity.





Examples of usage
Measure force simply by hand. Fix with optional handle for
stable measurement. 		 Combine with manual test stand for high repeatable
measurement.





Main Functions

・Tension measuring shaft
Measure tension forces with the supplied attachments such as small hook.

 ・Peak switch
This switch activates or clears peak hold reading.
・Compression measuring shaft
Measure compress force with the supplied attachments such as flat tip, conical tip, chisel tip and notched tip.		 ・Tare ring
Rotate the tare ring to delete theattachment weight or error cause by position.





Dimension
